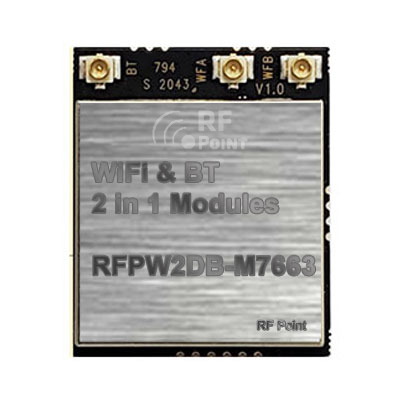

WiFi & BT - 2 in 1 Modules

Technical Specifications

General

• Wi-Fi Standard: IEEE 802.11b/g/n/ac
• Bluetooth Support: Bluetooth 5.1
• Interface: USB
• Power Supply: Single 3.3V supply
• Dimensions: 25mm x 30mm x 3.7mm

Performance

• Maximum Throughput: Up to 866.7Mbps (802.11ac)
• Dual-Band Support: 2.4GHz and 5.8GHz for enhanced communication performance.
• Transmission Range: Up to 100 meters (depending on environment and antenna configuration).

Power Consumption

• Low Power Consumption: Optimized for energy-efficient operation, suitable for battery-powered devices.
• Power Modes: Supports active and low-power sleep modes for enhanced battery life.

Environmental

• Operating Temperature: -20°C to +85°C
• Storage Temperature: -40°C to +125°C

Interface

• USB Interface for seamless communication with external devices.

Block Diagram Description

1. WLAN MAC

   • Responsible for the management of wireless communication, including data link layer operations like packetization and error correction.

2. WLAN RF & Baseband

   • Manages both 2.4GHz and 5.8GHz frequency bands, ensuring optimal wireless performance for data transmission and reception.

3. Bluetooth 5.1 Controller

   • Provides Bluetooth 5.1 functionality for seamless wireless connectivity with Bluetooth devices.

4. USB Interface Controller

   • Handles the USB communication between the module and host systems for data transfer.

5. Power Management Unit

   • Regulates the 3.3V power supply, ensuring optimal energy consumption and enabling low-power operation.

6. Antenna Interface

   • Interfaces with external antennas to optimize wireless signal strength and range for both Wi-Fi and Bluetooth communication.
